FAW TRUCKS J6P truck, one of the most high-end trucks in China, is well-known for its outstanding fuel economy (it can save fuel by 2-3 litres per hundred kms), spacious cab, and big power engine of 11 litres; it is a safe, reliable and comfortable money-making machine for users.

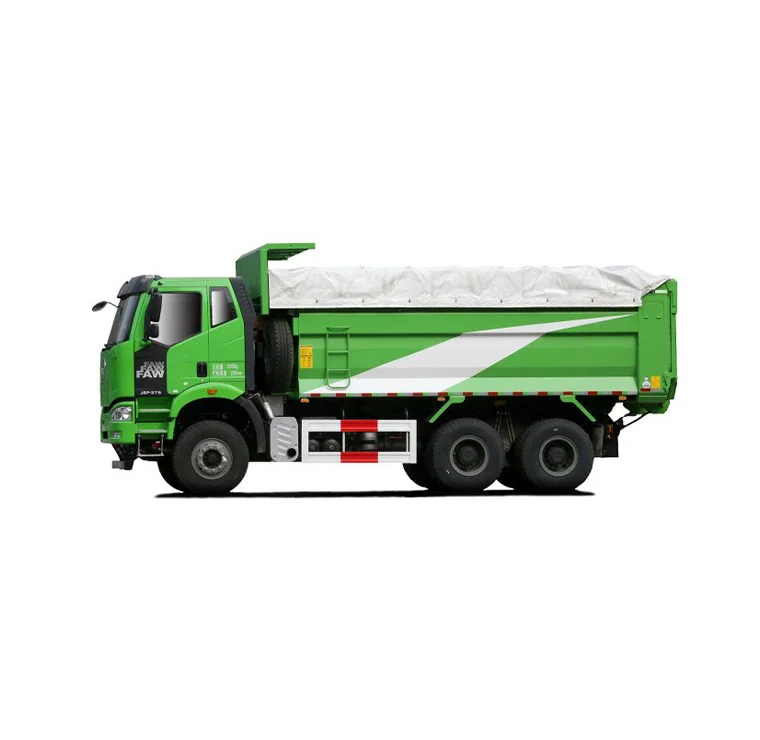

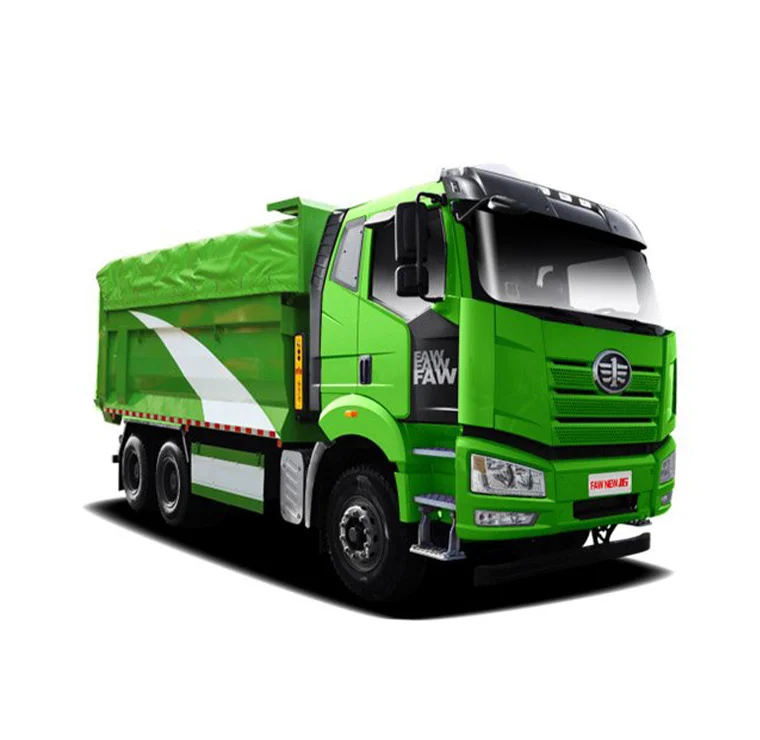

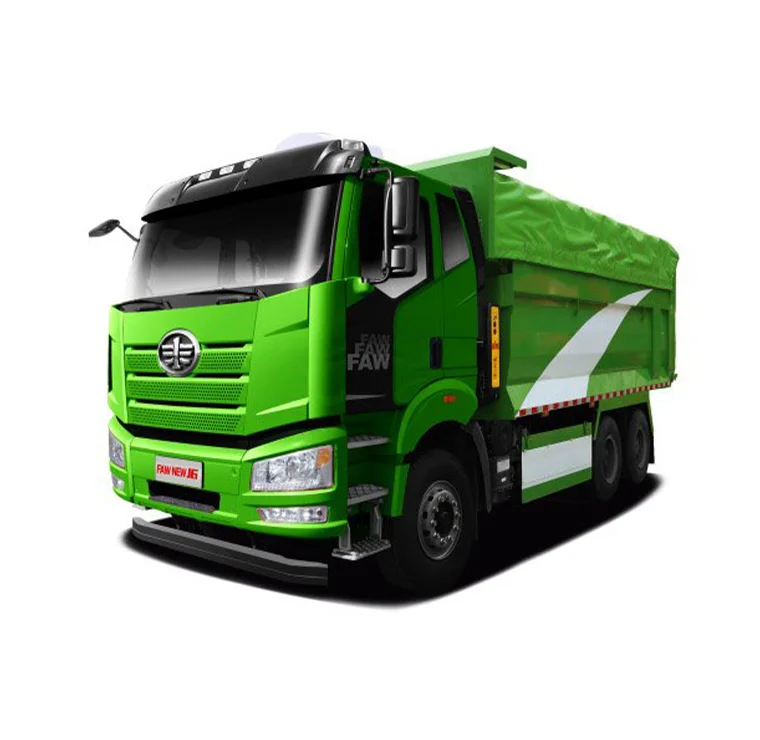

| FAW TRUCKS 6X4 J6P DUMP TRUCK | |
| Drive System | 6×4 |
| Cabin | J6P flat-top small semi-cab |
| Engine | CA6DM2-42E6 |
| Rated power | 350hp-420hp |
| Gearbox | Manual, 12 forward speeds, 2 reverse speeds. |
| Clutch | Ф430 |
| Dump box dimension (mm) | 5800*2300*1500 mm |
| Thickness of dump box (mm) | Bottom 8mm, side 6mm, |
| Loading capacity (kg) | 7000-18000 kg |
| Lifting system | Middle-lifting style |
| Wheelbase (mm) | 3800+1350 |
| Wheelbase (mm) | 1860+3910+1450mm |

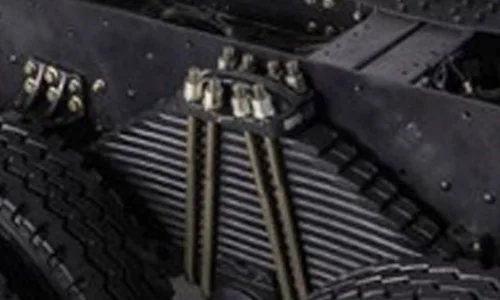

Good Passability
The cab is raised, increasing the clearance between the water tank and the ground to provide better passability. The metal guard plate is added to prevent the chassis from scraping and damaging the water tank.

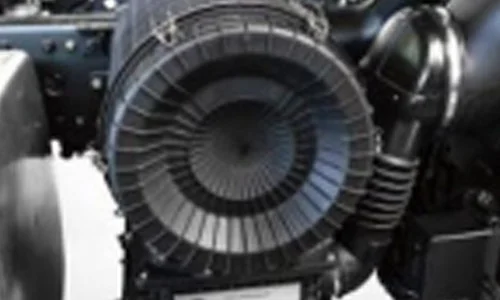

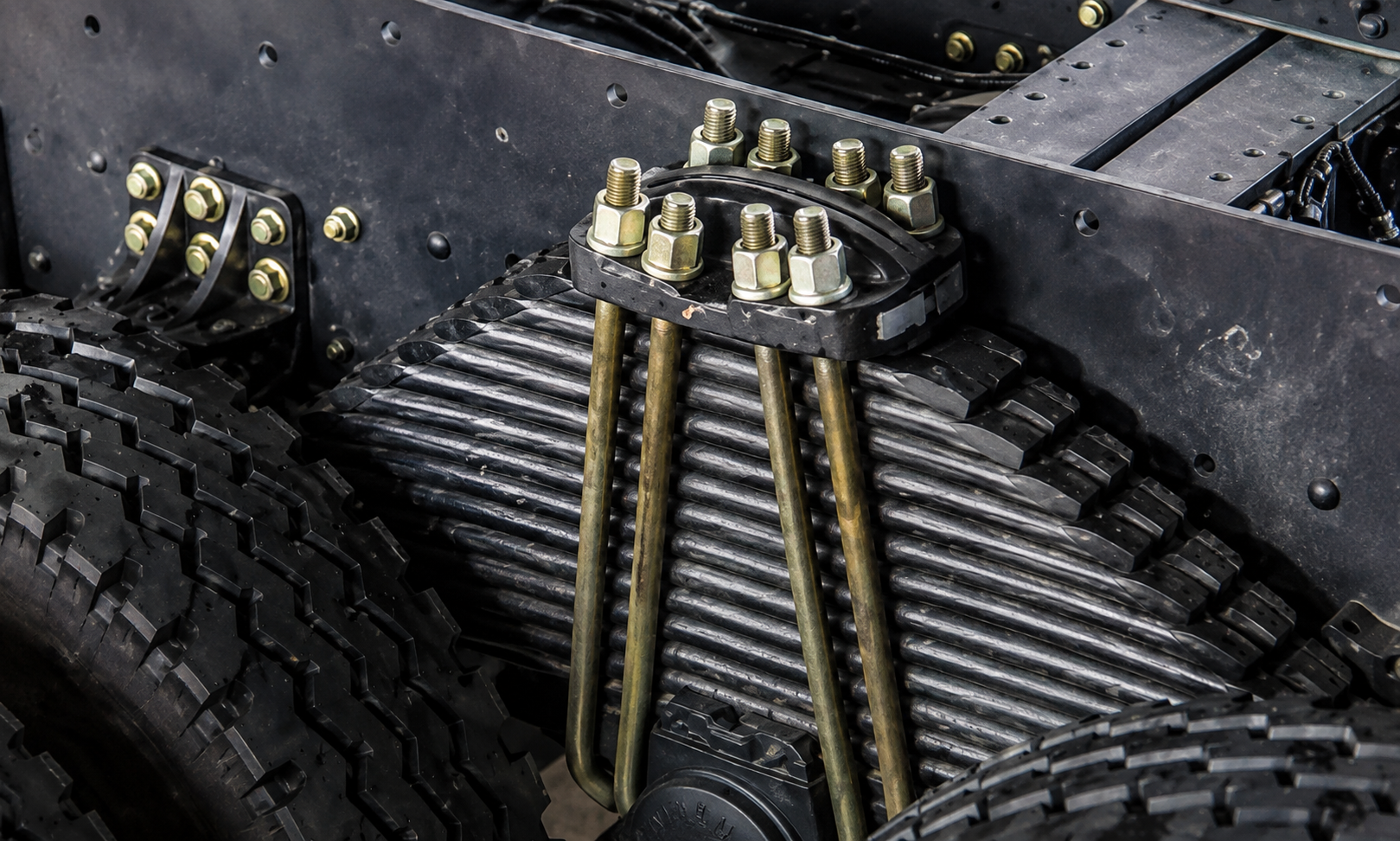

Super Carrying Capacity
A unique 300x80x(8+8+5) three-layer through frame, made of high-strength special steel, has a strong carrying capacity.

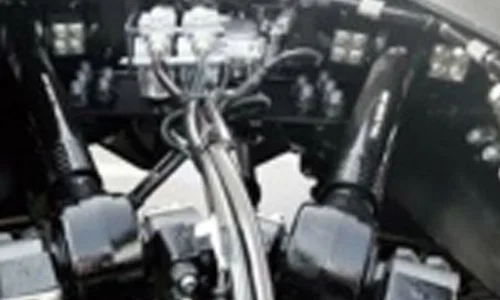

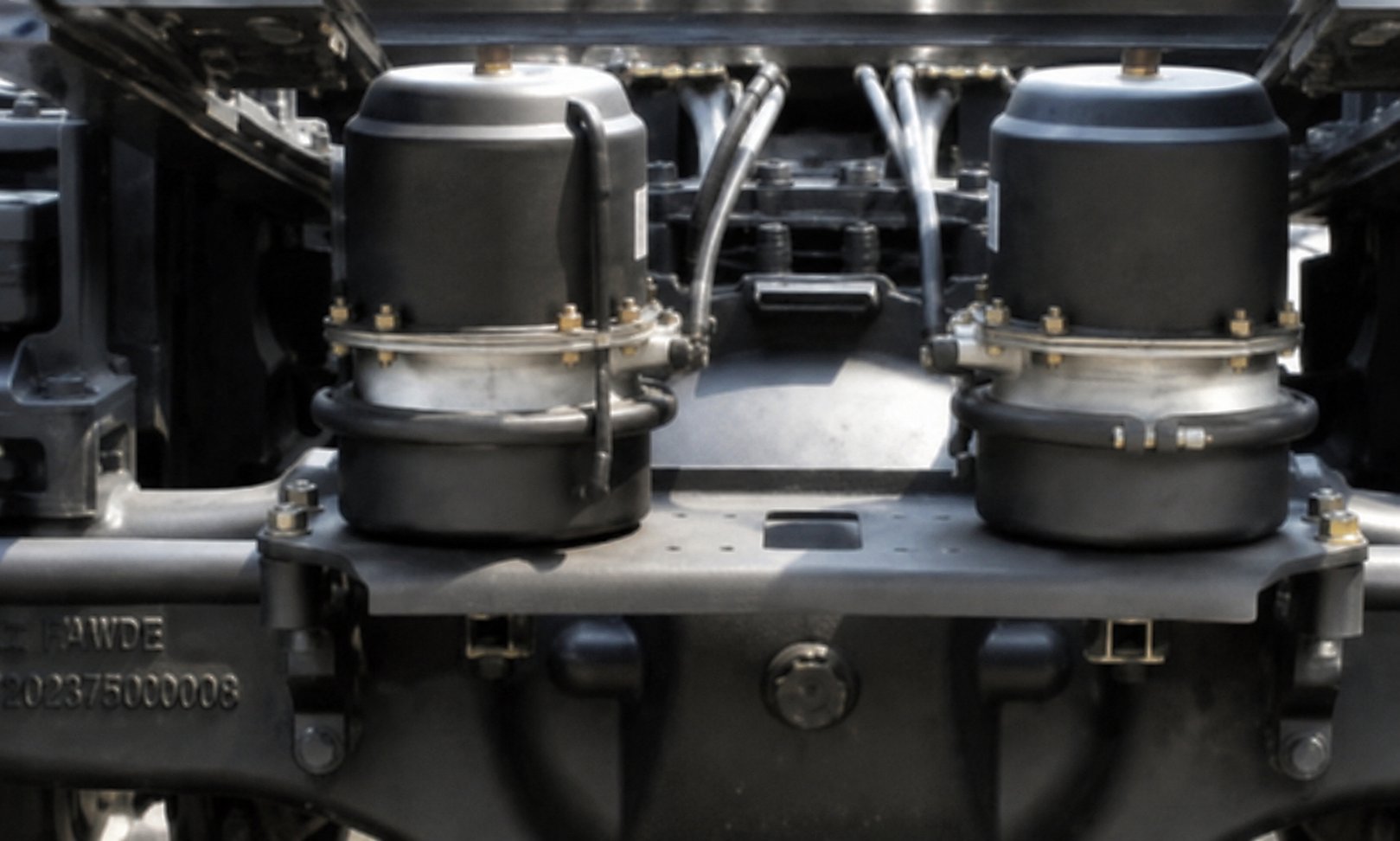

Safety Protection
Standardly equipped with FAWDE FCB (FAWDE CHAIN BRAKE) solid-chain brake system with good retarding performance to effectively shorten braking time and distance. The instrument panel is lowered to provide a wider view. The front-view mirror is lengthened to reduce blind points to ensure safety.

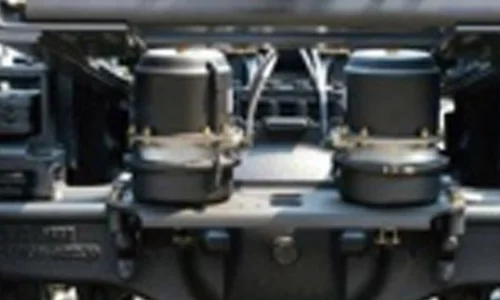

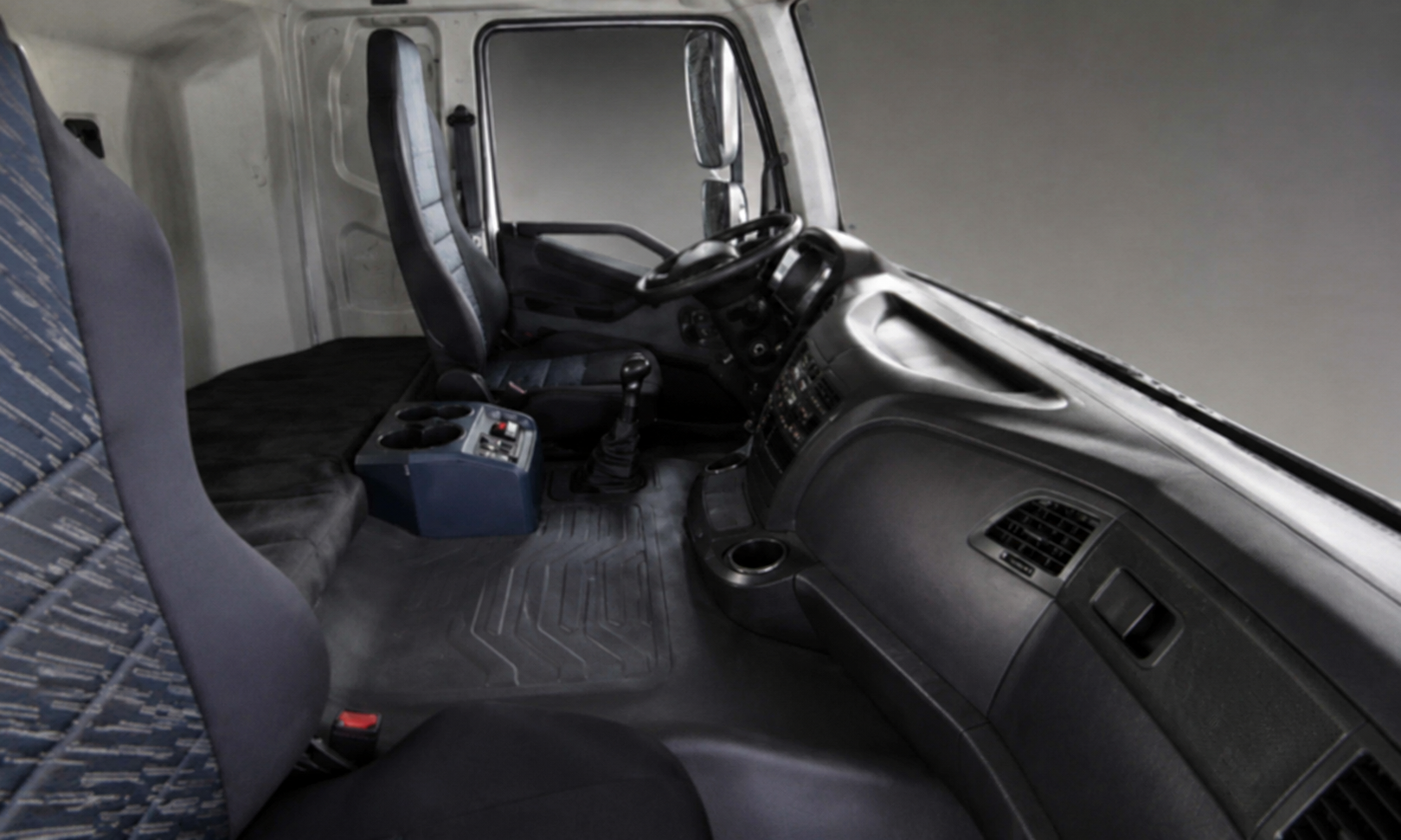

Comfortable Driving and Riding
A large-space double-layer sealing cab with an insulation pad to reduce radiation and noise, air shock absorption seats, four-point air suspension, an optional independent heater, seat heating, ventilation, independent cold air, a 220Ah battery, a rain shield and screen window and other equipment provide you a comfortable mobile home.
ENGINE – CA6DM2
A perfect engine specially designed for heavy-duty commercial vehicles, a “golden displacement” product for the heavy-duty truck industry.
The CA6DM2 engine is mainly equipped on engineering and road tractors, road-rigid trucks, heavy-duty dump trucks and special purposes, with a displacement of 11L, a power range of 390-460PS and a torque range of 1,550-2,100Nm.
