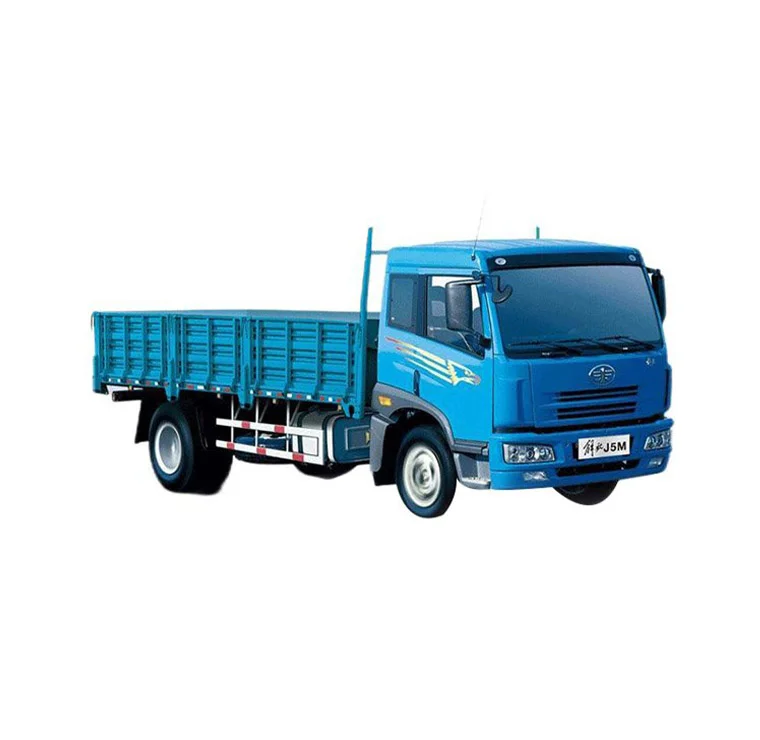

New-model J5M cab: low wind-resistance design of an international trend, perfect and elegant appearance. Front panel and doors fitted with anti-collision beams, safe and reliable; Equipped with an FAW engine, powerful and oil-saving; High-strength frame, one-time punching of inside and outside plates, high payload, and high anti-torsion ability. A two-stage air filter greatly improved efficiency and made maintenance convenient. Optimization design to reduce curb weight, around 0.3T lighter than competitors; Apply to medium- and long-distance transportation.
PRODUCT DETAILS
| FAW TRUCKS J5M SERIES MODEL 4X2 RHD | |
| Drive System | 4×2 |
| Cabin | J5M Flat-top row half cab |
| Engine | FAWDE/WEICHAI |
| Rated power | 220hp-260hp |
| Gearbox | Brand: FAST/FAW |
| Manual, 8-9 forward speeds, 1 reverse speed | |
| Clutch | Ф395/430 |
| Emission | Euro II |
| Wheelbase (mm) | 4770-6900 |
| Loading capacity (kg) | 20000-30000 |
| Cargo box dimension (mm) | 5400-6200×2500×800 |
| Tires | 10.00R20-16PR/11.00R20-16PR |
| 11R22.5-16PR/12R22.5-18PR | |
| Fuel Tank (L) | 200/300/400 |
| Optional | ABS/PTO |
| Front axle | A1H, 6.5T Loading Capacity |
| Rear axle | 457.13T Loading Capacity |
